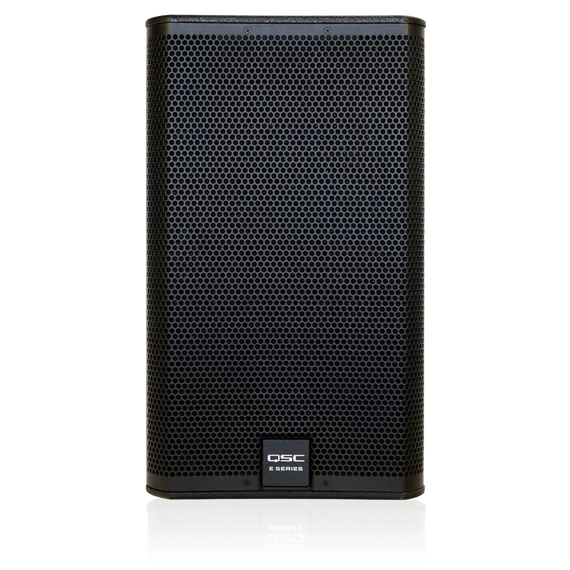

| Model | E112 |
|---|---|
| Configuration | 1 × 12-inch, 2-way, non-powered |
| Frequency Response (-6 dB) | 64 Hz – 20 kHz |
| Frequency Range (-10 dB) | 46 Hz – 20 kHz |
| Power capacity1: continuous/peak | 400 W / 1600 W |
| Sensitivity | 96 dB, 1 W @ 1 m |
| Coverage Angle | 85° conical DMT™ |
| Output2 (peak SPL @ 1m) | 128 dB |
|
Drivers LF HF |
305 mm (12 in) driver with 76 mm (3 in) voice coil 25 mm (1 in) exit, 45 mm (1.75 in) voice coil, compression driver |
| Nominal Impedance | 8Ω |
| Cross-over | Full range only, 1.8 kHz |
| Input Connections | 2 × NL4, 1 × barrier strip |
| Enclosure | Trapezoidal, plywood, black texture paint finish. Two side-mounted handles. Perforated, powder-coated steel grille with foam lining. |
| Speaker Dimensions (W×H×D) |
360 × 616 × 371 mm 14.2 × 24.2 × 14.6 in |
| Carton Dimensions (W×H×D) |
460 × 460 × 712 mm |
| Net Speaker Weight | 23 kg / 51 lb |
| Shipping Weight | 25.4 kg / 56 lb |
